ES800
2D CMOS READER MODULES
Empowering Kiosk Solutions - The Unitech ES800 2D embedded barcode reader module is the ideal solution for OEM kiosk (self-service/ interactive kiosk) and EPOS integration. This Unitech 2D CMOS imager reader enables you to bring your systems to the market quickly and cost effectively. Therefore, Unitech introduces 2 models to meet the system requirements based on size and functionality.

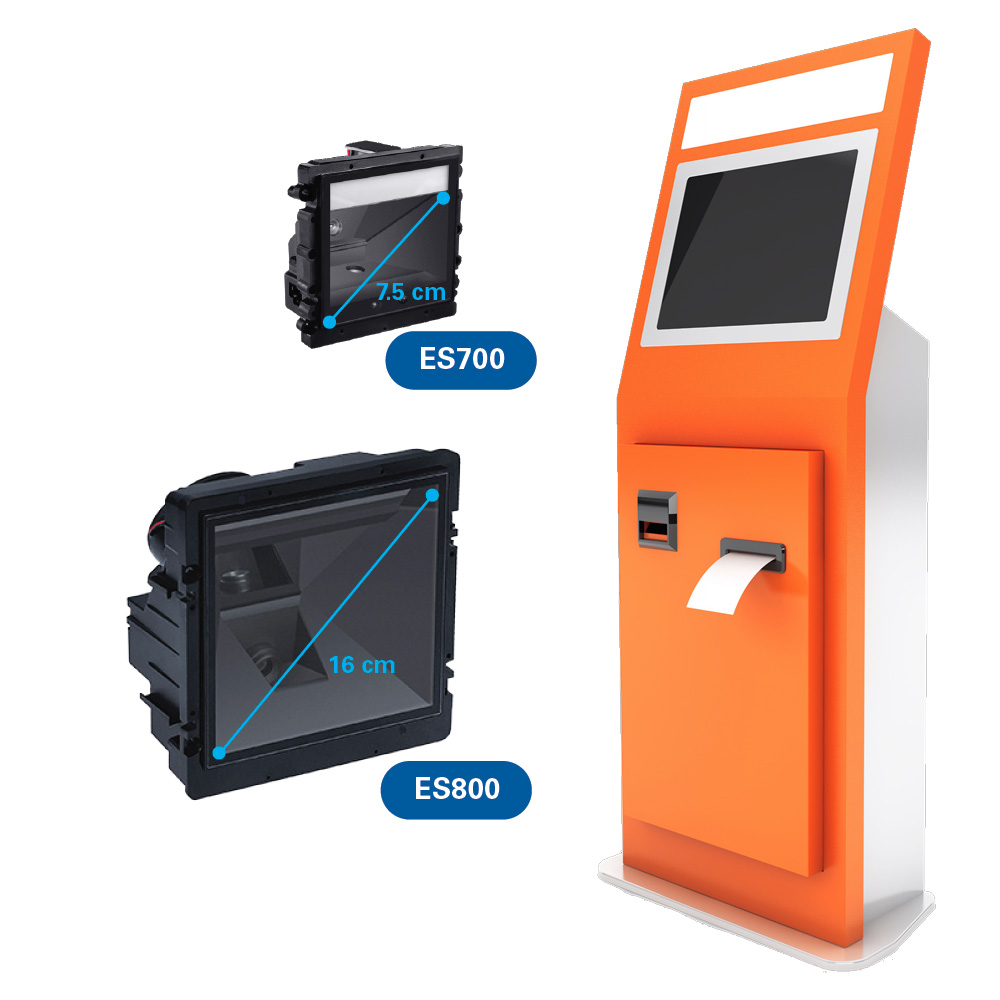

• The ES700 has a diagonal screen measurement of 7.5 cm and is designed when high motion tolerance is needed, used in a semi-outdoor environment and a compact size is required.
• The ES800 has a diagonal screen measurement of 16 cm and is designed for the self-checkout and POS market, especially when a larger reading screen is key for the solution.

Features ES800
The ES800 support several scanning modes such as: auto-detection (image auto-induction), continuous scanning and embedded scanning commands via the host mode**. (** Host mode is only applicable via RS232 interface and USB-SPP (USB virtual com port).
The ES800 is a high performance and aggressive readers which offers superior 1D and 2D scanning, able to read digital barcodes from mobile screens (including QR codes) without losing scanning quality or performance. It will facilitate users to scan barcodes at extraordinary
speed on their first pass thanks to its high motion tolerance imaging speed.
The ES800 support multiple interfaces and enabling them to smoothly be utilize with different devices. In addition it feature a loud but adjustable speaker and offers convenient visual confirmation of good scans.
Kios and POS solutions

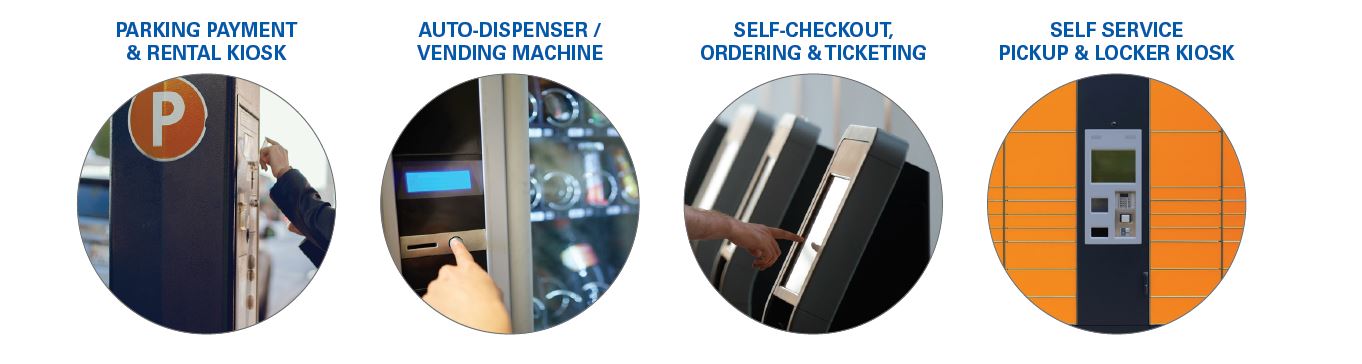

The Unitech ES800 imager is specilly designed for Kios and other POS solution integration in mind that require high performance and easy configuration. This imager can be used in a wide variety of applications such as:

More information?
We're here to help. Our European-based team is ready to assist with product support, purchasing information and general inquiries.
● E. info@eu.ute.com
● T. 0031 (0)13 460 9292
Physical characteristics
Dimension 147×74.5×139 mm (diagonal screen 16 cm)
Weight 361g(without cable)
Case material PC
Cable Black, straight, 2.0m (comes inside the box)
Connector RJ45
Interface USB - HID, USB - SPP, RS232
Indicator Beeper and LED
Scan Mode Auto-detection (infrared auto-induction, image auto-
induction), Continue mode and Host mode **
**Host mode via RS232 interface and USB-SPP (virtual com port).
Program Method Manual by scanning special barcodes in sequence
or Remote commands
Input voltage 5±0.25V
Inside the box ES800 + 2.0m USB/RJ45 cable
Electrical characteristics
Current Working: 550mA, 800mA(max);
Standby: 220mA
Performance characteristics
CPU 32 bits ARM processing
Scan pattern Image scan
Image resolution 1280×10240 pixels
LED White, 2700K
Scan angle Skew: ±60°, Pitch: ±54°, Roll: 360°
Field of view Horizontal: 40°, Vertical: 32°
Frames/second 60 frames/sec.
Motion tolerance no less than 3 m/s
Print contrast 20% minimum reflectance difference
Support symbology All common 1D & 2D barcodes
incl. GS1 DataBar
Minimum resolution 4mil
Reading distance (DOF)*
4 mil Code39 (9 chars) 35 mm - 70 mm
5 mil Code39 (3 chars) 25 mm - 80 mm
10 mil Code39 (3 chars) 0 mm - 120 mm
13 mil UPC (6 chars) 0 mm - 140 mm
15 mil Code39 (1 char) 0 mm - 145 mm
20 mil Code39 (1 char) 0 mm - 210 mm
6.7mil PDF417 (20 chars) 20 mm - 95 mm
10mil QR (20 chars) 10 mm - 100 mm
20mil QR (20 chars) 10 mm - 100 mm
(*Depending on width, type and quality of barcode)
Environmental Characteristics
Temperature Operating: -0°C to 70°C
Storage: -40°C to 70°C
Humidity 5% to 95% (non-condensing)
Safety, EMC & Warranty
EMC: EN55032:2015, EN55024
Electrical safety: EN60950-1
Photo biological: EN62471
RH immunity, IEC61000-4-3, 10V/m
Artificial light immunity: Illumination: 0 to 100,000LUX
Regulatory approvals; CE, FCC, RoHS
Warranty 1 year
-
USB cable
Cable Black, straight, 2.0m (comes inside the box)
Brochure
-
File Description |
Download |
Brochure EN Version 1.0 |
 |
